Female header, PCB Mount Receptacle, Vertical, Board-to-Board, 10 Position, 2.0mm Pitch, Shrouded, Gold Flash, 90 degree

Product Description
PCB connector component type: PCB mounting parent
Connector system: board to board
Type of connector: with hood
Connector and terminal end connection: printed circuit board
Number of loading locations: 10
The number of rows: 1
PCB mounting direction: straight angle
Number of Positions: 10
Operating Voltage (VAC) : 125
Dielectric withstand voltage (maximum) (VAC): 650
Connector profile: Standard
Terminal base material: phosphor bronze
PCB terminal end area electroplating material: gold-plated
Electroplating material of terminal contact part: gold-plated
Terminal rated current (Max.) (A): 2
Shell color: black
Shell material: LCP (Liquid crystal polymer)
Operating temperature range (°C): -40 -- 125, -40 -- 125
Operating temperature range (°F): -40 -- 257, -40 -- 257
Shell temperature rating: High
UL flame retardant rating: UL 94V-0

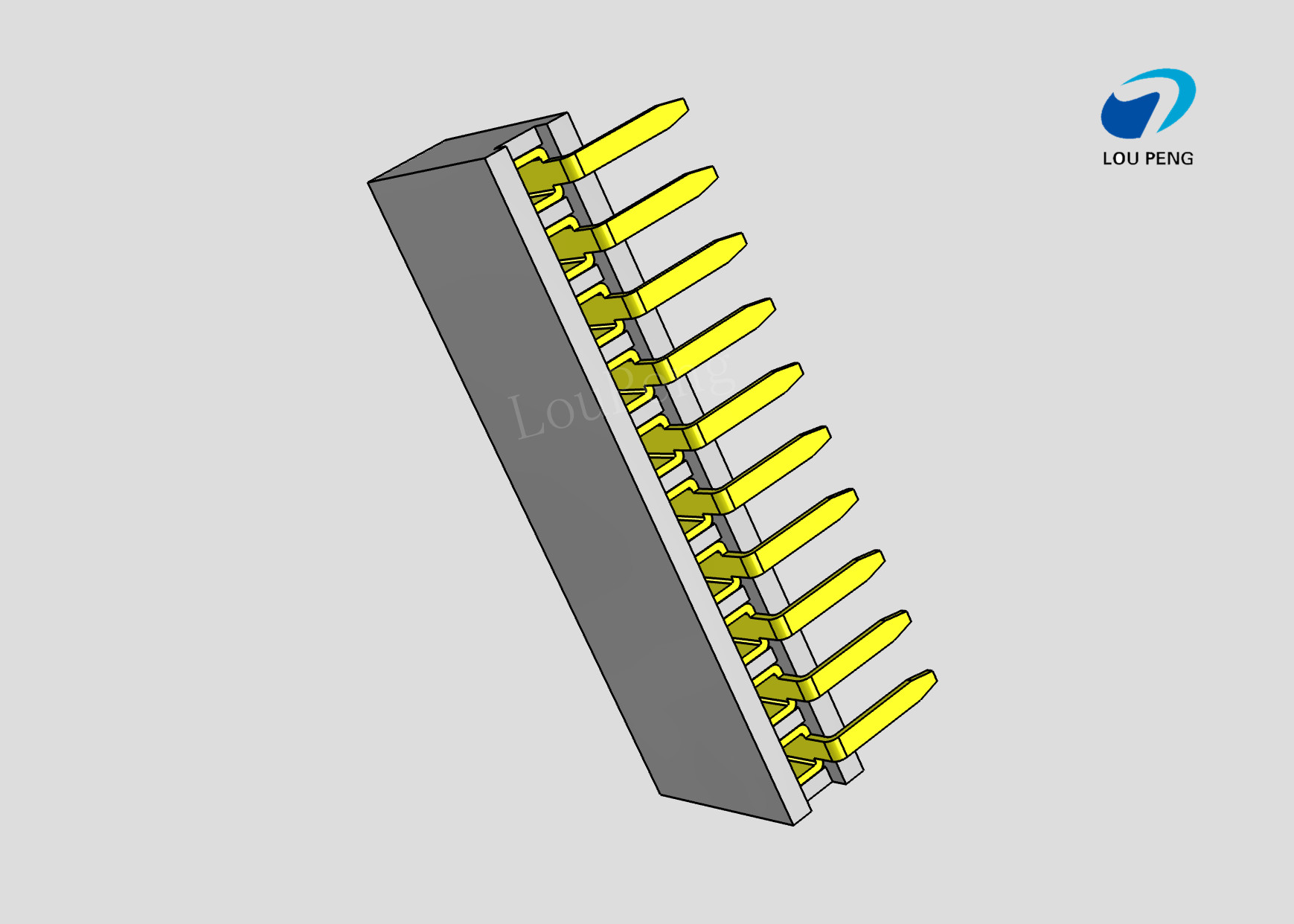

Female header, PCB Mount Receptacle, Vertical, Board-to-Board, 10 Position, 2.0mm Pitch, Shrouded, Gold Flash, 90 degree Images
